The Universal Knee Type Milling Machine (Model YKM-5S) is engineered for high-precision milling operations across a wide range of applications. With its robust construction, advanced features, and comprehensive standard accessories, this machine guarantees exceptional performance, durability, and reliability.

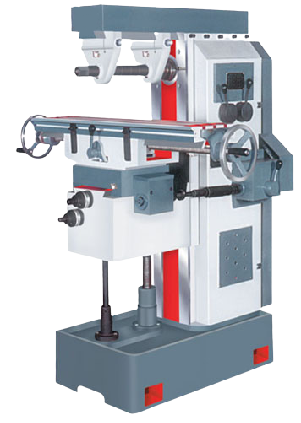

Universal Knee Type Milling Machine Model : YKM-5S
Attachments:
- Universal Dividing Head with Cross Plate
- Vertical Milling Head, Universal Milling Head, and Angle Plate
- Slotting and Rack Milling Attachment
- Power-Operated Round Table
Operational Enhancements:
- Coolant Equipment with Pump and Motor
- Machine Lamp (LED, 220V)
- Centralized Lubrication System
- Wipers for Guideways
Universal Knee Type Milling Machine Model : YKM-5S
Technical Specifications
| Feature | Specification |
|---|---|
| Table Dimensions (L x W) | 1500 x 310 mm |
| Clamping Area | 1350 x 310 mm |
| T-Slots | 3 No, 16 mm, 65 mm spacing |
| Min. Distance Table End to Spindle Center | 250 mm |
| Table Load Capacity | 250 Kg |
| Table Swivel | 35° |
| Ram Travel | 500 mm |
| Longitudinal Traverse (X-Axis) | 800 mm |
| Cross Traverse (Y-Axis) | 230 mm |
| Vertical Traverse (Z-Axis) | 400 mm |
| Number of Feeds | 6-8 Steps |
| Cutting Feed Rates (X & Y Axis) | 20 to 400 mm/min |
| Cutting Feed Rates (Z Axis) | 4 to 200 mm/min |
| Rapid Traverse Rates (X & Y Axis) | 1025 mm/min |
| Rapid Traverse Rates (Z Axis) | 207 mm/min |
| Feed Motor Power | 1.5 kW / 1500 RPM |
| Spindle Speed Range | 58-1800 RPM (12 Steps) |
| Spindle Nose Taper | ISO 40 |
| Front Bearing Diameter | Ø 75 mm |
| Distance Spindle Center to Overarm | 145-160 mm |
| Distance Spindle to Tabletop | 30 to 400 mm |
| Main Motor Power | 5.5 kW / 1500 RPM |
| Power Supply | 3-Phase, 415V |
Standard Accessories
Tooling and Clamping:
- Draw Bolt with Nut
- Self-Centering Vice
- Machine Vice with Swivel Base (Ø 200 mm)
- Stub Milling Arbors (ISO 40)
- End Mill Holders (Ø 5 to Ø 25 mm)
- Conical Collet Set (Ø 5 to Ø 20 mm)
- Collet Holder ISO 40
- Arbor Supports and Brackets
